Scott Type Paper Cardboard Corrugated Internal Bond Tester

Gester International Co., Ltd
Contact Now

Scott Type Paper Cardboard Corrugated Internal Bond Tester

Brand Name : GESTER

Model Number : GT-N25

Certification : CE,ISO

Place of Origin : CHINA

MOQ : 1 set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets/month

Delivery Time : 10-30 days

Packaging Details : wooden packaging

Loading Method : Dynamic Load

Weight : 60Kg

Specification : 450m*380mm*600mm

Certificate : CE, ISO

Resolution : 0.001lbf/in2

Product name : Scott Type Paper Cardboard Corrugated AInternal Bond Strength Tester

Keyword : AInternal Bond Strength Tester

Data printing : Thermal printer is equipped inside

Software : Can be connected with computer

Max.thickness of sampling : 1.2mm

Contact Now

Scott Type Paper Cardboard Corrugated AInternal Bond Strength Tester





Application

This instrument is use to internal bond strength for paper and cardboard (among paper layers, paper internal bonding). It also can be used for internal bond strength testing for paper composite materials, film composite materials and other slice materials. Such as bobbin fibre paper, whiteboard, brown paper, linerboard, aluminum foil composite packaging materials etc.





Standards
GB/T 26203-2010 Internal bond strength (Scott type)
TAPPI T569pm-00 Internal bond strength (Scott type)
TAPPI T833pm-94





Key Specification

 Model  GT-N25
 Specimen size  25.4mm×25.4mm
 Sampling number  5pcs / time
 Parallelism of specimen  < 0.1mm
 Max.thickness of sampling  1.2mm
 Frequently used specimen compression  (690±21)kpa or (1034±34)kpa, can be adjustable according to specimen thickness.
 Gripping force  0~400N (Adjustable)
 Specimen pressure range  0~65kg/cm²(0~950psi)
 Grade one pressure area  12.72cm²
 Specimen base parallel orientation  R=0.4×10
 Pressure arm ratio  231.08:0.8
 Release way  Automatic release
 Impact angle  90°
 Resolution  0.001lbf/in2
 Dual adhesive tape requirement  Viscous force for stain steel > 486N/m
 Testing range

 A range: (0~500)J/M2

 B range: (500~1000)J/M2

 C range: (1000~1500)J/M2 (Optional)

 Indication error

 A range: ±1JJ/M2

 B range: ±2J/M2

 Unit  J/M2, lbf/in2 interchange
 Human-computer interface  Color touch screen control, real-time display
 Software  Can be connected with computer
 Data printing  Thermal printer is equipped inside
 Dimension  450m×380mm×600mm
 Weight  60KG

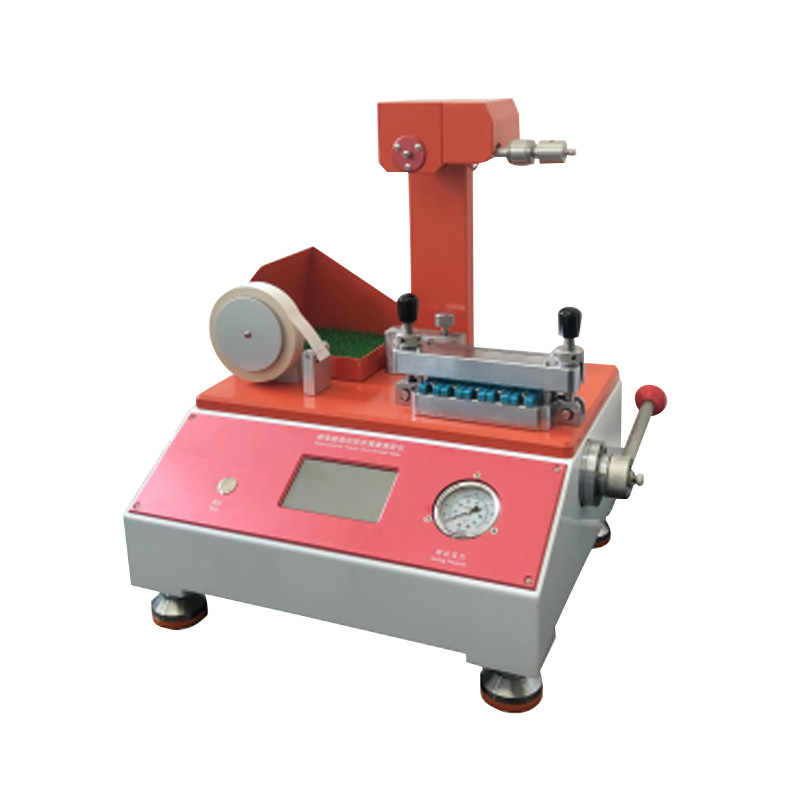

Product Image

Scott Type Paper Cardboard Corrugated Internal Bond Tester
