CCT Digital Corrugated Concora Medium Fluter CMT Tester

Name: CCT Digital Corrugated Concora Medium Fluter CMT Tester
Brand: GESTER
Price: 1 USD

Brand Name : GESTER

Model Number : GT-N23

Certification : CE,ISO

Place of Origin : CHINA

MOQ : 1 set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets/month

Delivery Time : 10-30 days

Packaging Details : wooden packaging

Spring tension : 90 degree

Number of teeth : 84 pcs

Specification : (4309*285*300)mm

Certificate : CE, ISO

Power : AC220V,50Hz

Product name : CMT CCT Corrugated Concora Medium Fluter Tester

Keyword : CMT CCT Corrugated Concora Medium Fluter Tester

Standard tooth type : A type tooth

Dimension : 564mm*377mm*330mm

advantage : factory price

Contact Now

CMT CCT Corrugated Concora Medium Fluter Tester

Application
Corrugating Medium Flute Tester is used to test the flat compression and vertical compression strength of corrugating medium after laboratory fluting corrugating medium. This tester is specially used to make standard sample for flat compressive strength test and vertical compressive strength test of corrugating medium - make standard corrugating waveform(the corrugating medium after laboratory fluting). After corrugated, use full automatic or micro-computer compression tester to determinate flat and compressive strength of corrugating medium. It is comply with standard of QB/T 1061, GB/T2679.6, ISO7263 and so on. This tester is widely use in paper mills, scientific research, quality inspection institutions and other industrial of corrugated paper.

Standards
QB/T 1061, GB/T2679.6, ISO7263, TAPPI T 809 om-17

Key Specification

Model	GT-N23
Working speed	4.5r/min, error<0.5r/min
Temperature display resolution	1℃
Temperature measurement accuracy	0.5 grade ± 1 word
Adjustable temperature range	room temperature ~200℃
Working pressure adjustable range	(49~180)N, working pressure should be consistent with the actual working pressure of flute roller, error should not exceed ±10%
Standard working temperature	175℃, the actual error should not exceed 8 ℃ at 177 ℃
Safety temperature	After working time ≥ 2h, the shell temperature shall not exceed 50°C
Heating mechanism	the insulation resistance of the hot plate should be > 5m Ω
Real-time monitoring	With monitoring window (155×338mm), it can be opened at any time to monitor the real-time working state
Ambient temperature	20 ± 10 ℃; no vibration, without flammable and corrosive gas
Standard tooth type	A type tooth
External diameter of flute roller	228.5±0.5mm
Thickness of flute roller	16 ± 1 mm
Number of teeth	84 pcs
Arc radius of crest of thread	R l.5 ± 0.1mm
Arc radius of tooth valley	R 2.0 ± 0.1mm
Height of whole tooth	4.75 ± 0.05 mm
Power supply environment	the fluctuation range of power supply voltage should not exceed 10% of the rated voltage
The worktable is stable and flat without vibration. Angle	90 degree
Spring tension	100N
Dimension(L×W×H)	≈ 564mm×377mm×330mm
Power	AC220V,50Hz

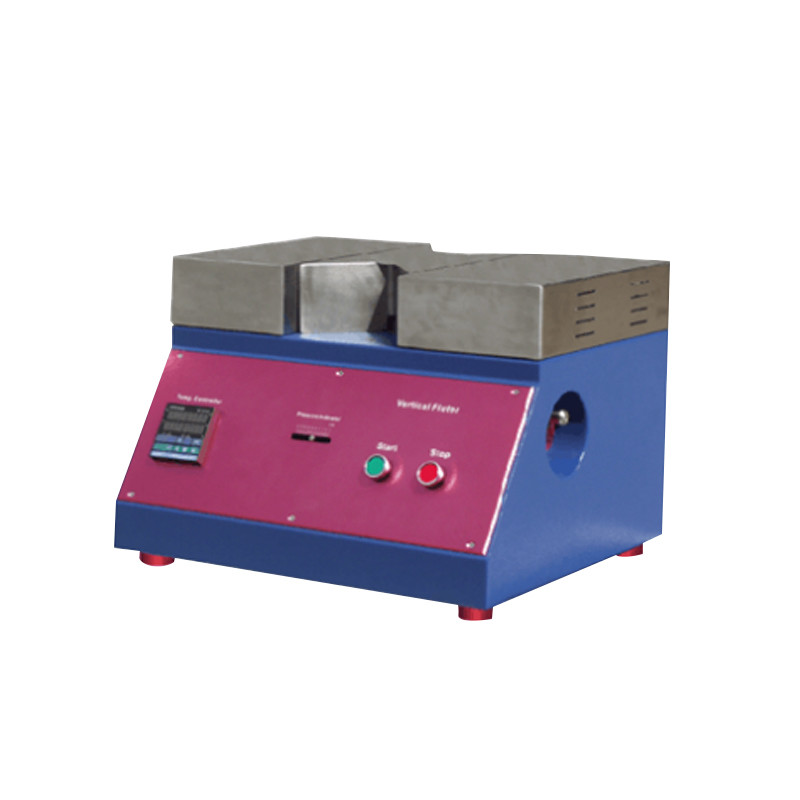

Product Image
