TAPPI T803 Puncture Resistance Tester Of Corrugated Box

Brand Name : GESTER

Model Number : N18

Certification : CE,ISO

Place of Origin : CHINA

MOQ : 1 set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets/month

Delivery Time : 10-30 days

Packaging Details : wooden packaging

Product name : TAPPI T803 Puncture Resistance Tester Of Corrugated Box

Price : factory price

Certificate : CE ISO

Warranty : 1 Year

Key words : Puncture Resistance Tester

Standards : ISO3036, GB/T2679.7, TAPPI T803

Printer : thermal printer

Dimension(mm) : 900*420*810

Weight (kg) : About 120 kg

Resolution : 0.001J

Contact Now

TAPPI T803 Puncture Resistance Tester Of Corrugated Box





Application
GT-N18 Puncture Resistance Tester is for various kinds of cardboard such as boxboard an Corrugated cardboard. The tester is designed according to the standard. The puncture strength is the energy that the puncture produces recur to he kinetic energy of the oscillating body. The tester is composed mainly by the rack equipment, splinting devices, pendulum devices, release devices and components such as control box; its shape the structure of a diagram.
Equipment with compact structure and function of the whole, easy to operate, stable performance, reliable security features. It is the necessary equipment of Inspection for production enterprises, research units and departments of Quality Supervision.





Standards
ISO3036, GB/T2679.7, TAPPI T803





Key Specification

 Model  bGT-N18
 Gear Positions

 A:0~6J;

 B:6~12J;

 C:12~24J;

 D:24~48J
 Accuracy  ≤±0.5%
 Testing Range  0~48J
 Resolution  0.001J
 Pressure of the Press Head  100±2kpa
 Friction sleeve resistance  <0.25J
 Pyramid Side Length  60×60×60mm, height: 25±0.7mm
 Pyramid Edge Fillet Radius  1.5±0.1mm
 Data Save Amount  10 times
 Printer  Thermal Pinter
 Dimension(mm)  900×420×810
 Weight (kg)  About 120 kg
 Power supply  1 phase AC 220V 50/60Hz 1KW

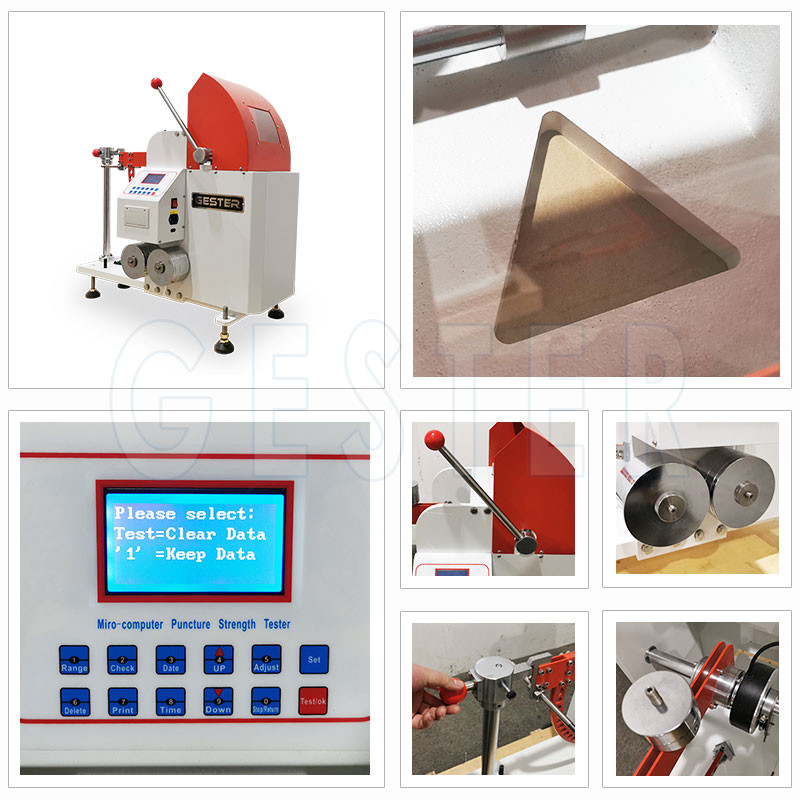

Product Image

TAPPI T803 Puncture Resistance Tester Of Corrugated Box
