ISO 17694 Bally Resistance Flexing Tester For Leather Materials

Brand Name : GESTER

Model Number : GT-KC10A

Certification : CE,ISO

Place of Origin : CHINA

MOQ : 1 set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets/month

Delivery Time : 10-30 days

Packaging Details : wooden packaging

Product name : Bally Resistance Flexing Tester For Leather Materials

Warranty : 1 year

Flex Testing Position : 6 or 12 or 24sets for option

Standards : SATRA TM 55; ISO5402-1; ISO 17694

Test object : Leather coating

Calibration Certificate : CE,ISO

weight : 60kg

Items : to test the flexing resistance of leather coating

price : factory price

Keyword : Bally Resistance Flexing Tester

Contact Now

Bally Resistance Flexing Tester For Leather Materials





Application
Bally Resistance Flexing Tester For Leather Materials to determine the resistance of a material to cracking or other types of failure at flexing creases. The method is applicable to all flexible materials and in particular leathers, coated fabrics and textiles used in footwear uppers.





Feature
The test specimen is folded in half then one end is secured in a clamp. The test specimen is then turned inside out and the free end secured in a second clamp at 90 degrees to the first. The first clamp is repeatedly oscillated through a fixed angle at a defined rate causing the test specimen to flex. At set intervals the number of flexing cycles is recorded and the damage to the test specimen is visually assessed. The test can be carried out with wet or dry test specimens at ambient.





Standards

SATRA TM 55; IULTCS/IUP 20-1;

ISO 17694 ; EN 13512 ;

EN344-1 section 5.13.1.3 and annex C;

EN ISO 20344 section 6.6.2.8;

GB/T20991 section 6.6.2.8;

AS/NZS 2210.2 section 6.6.2.8;

JIS-K6545; BS 3144 Clause 13

 Equipped with A type of upper grips.

ISO 32100 ; DIN53351; ISO5402-1;

GE-24;ASTM D 6182

 Equipped with B type of upper grips.





Key Specification

Model GT-KC10A-6 GT-KC10A-12 GT-KC10A-24
Test position 6Sets 12 Sets 24 Sets
Type of upper grips Please choose the suitable type as below chart of ‘Standard’.
Flexing angle 22.5° ± 0.5°
Flexing speed 100 ± 5 cycles / flexes per minute
Counter LCD 0 - 999,999.(adjustable)
Sample size 70 ± 5 x 45 ± 5 mm
Power supply AC 220V 50/60HZ
Dimensions ( L x W x H ) 700x300x340mm 780x450x360mm 1100x510x220mm
Weight About 45kg 60kg 70kg





Accessories

Standards Accessories Power line 1pc
Optional Accessories GT-KD20 Pneumatic sample cutting machine (Cutter: 70 ± 5 x 45 ± 5 mm)

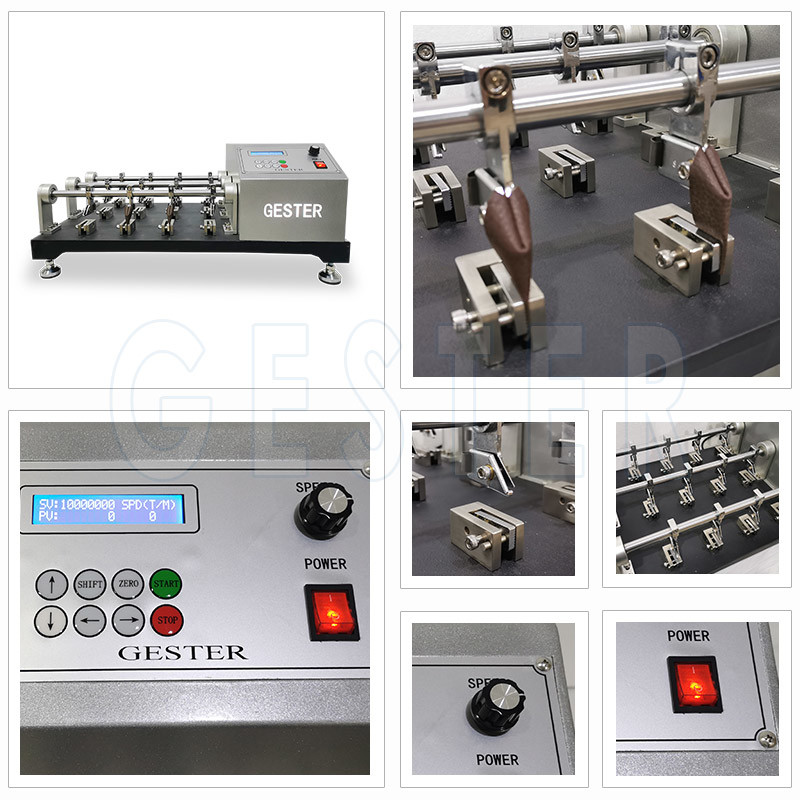

Product Image

ISO 17694 Bally Resistance Flexing Tester For Leather Materials
