Satra Tm 154 Shoelace And Shoe Eyelets Rub Test Machine

Name: Satra Tm 154 Shoelace And Shoe Eyelets Rub Test Machine
Brand: GESTER
Price: 1 USD

Buy cheap Satra Tm 154 Shoelace And Shoe Eyelets Rub Test Machine product

Brand Name : GESTER

Model Number : GT-KC02

Certification : ISO CE

Place of Origin : CHINA

MOQ : 1 set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets/month

Delivery Time : 10-30 days

Packaging Details : wooden packaging

Warranty : 1 Year

Standard : DIN 4843; SATRA TM 154

Display : Touch-screen control

Test position : 6 Test Groups

specification : 66*58*42cm

Weight : 50kg

Power supply : AC220V

Key words : Shoelace Rubbing Resistant Tester

Contact Now

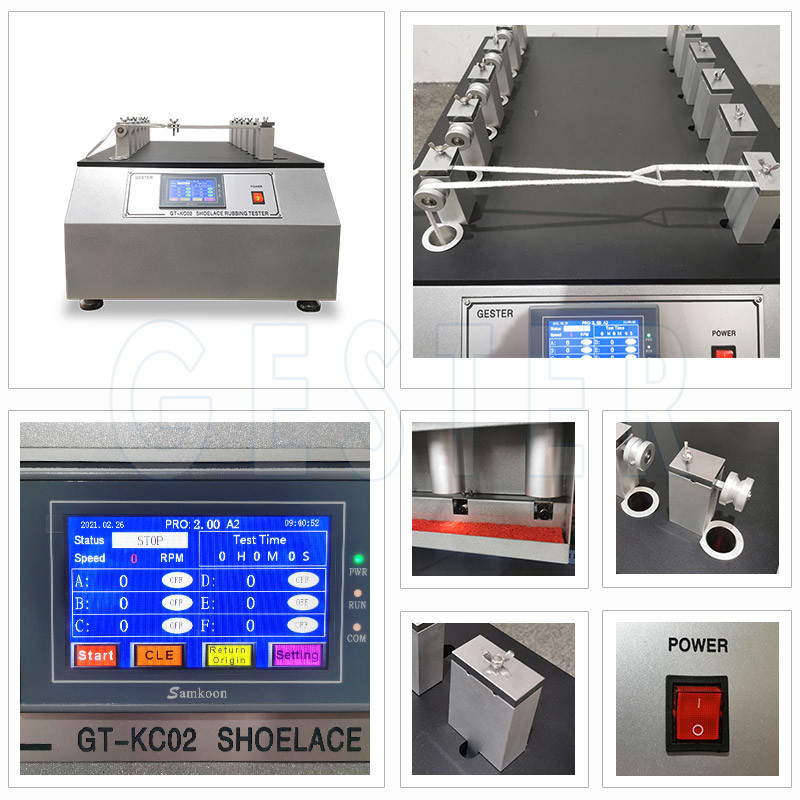

SATRA TM 154 Shoelace And Shoe Eyelets Rubbing Resistant Tester

Application

This machine is used to test the abrasion resistance for shoelace of cotton, hemp, chemical fiber or other materials.

Principle

Take two shoelace, mutually hook in the middle. Clamp the both ends of the shoelace at the movable fixture of shoelace rubbing tester, which can make reciprocating linear motion; clamp one end of the other shoelace on the corresponding fied fixture and another end of the shoelace round by a fixed pulley and hanging the a weight. Make the two shoelace abrasion each other by reciprocating linear motion. Then check the wear resistance, when the machine run up to pre-set times, the machine stop.

Key Specification

Model	GT-KC02A	GT-KC02B
Test position	4 groups	6 groups
Control	Touch-screen control, 0~999,999
Min. Separation between movable and fixed fixtures	280 ±50 mm
Movable fixture stroke	35± 2 mm
Test speed	60 ± 6 cycles/min
Sample loading gauge	Angle 52.5degree; Length120 mm
Stainless metal strip	W: 25mm, L: 250mm
Weight	250 ± 3g
Power supply	1∮AC 220V 50/60HZ
Dimensions ( L x W x H )	66 x 58 x 42cm
Weight	50 kg
Standards	DIN 4843 SATRA TM 154 ISO 22774 QB/T 2226 GB/T 3903.36 ISO 2023 Annex B
Standard accessories	250g Weights --------------- 4pcs Stainless metal strip ------- 4pcs Clip -------------------------- 4pcs Sample loading gauge------1pc Power line -------------------1pc	250g Weights --------------- 6pcs Stainless metal strip -------- 6pcs Clip --------------------------- 6pcs Sample loading gauge ----- 1pc Power line ---------------- --- 1pc

Optional Accessories

Optional accessories

Optional

Standard eyelet
