Touch Screen UL 94 Toys Testing Equipment Flammability Test Equipment

Name: Touch Screen UL 94 Toys Testing Equipment Flammability Test Equipment
Brand: GESTER
Price: 1 USD

Buy cheap Touch Screen UL 94 Toys Testing Equipment Flammability Test Equipment product

Brand Name : GESTER

Model Number : GT-MC35F-2

Certification : CE, ISO

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets/month

Delivery Time : 10-30days

Packaging Details : wooden packaging

Warranty : 1 year

Product name : Horizontal and Vertical Flame Chamber

Application : flaming tester

Technology : professional

Gester : SGS audited supplier,TUV

Service : installation and training service

Contact Now

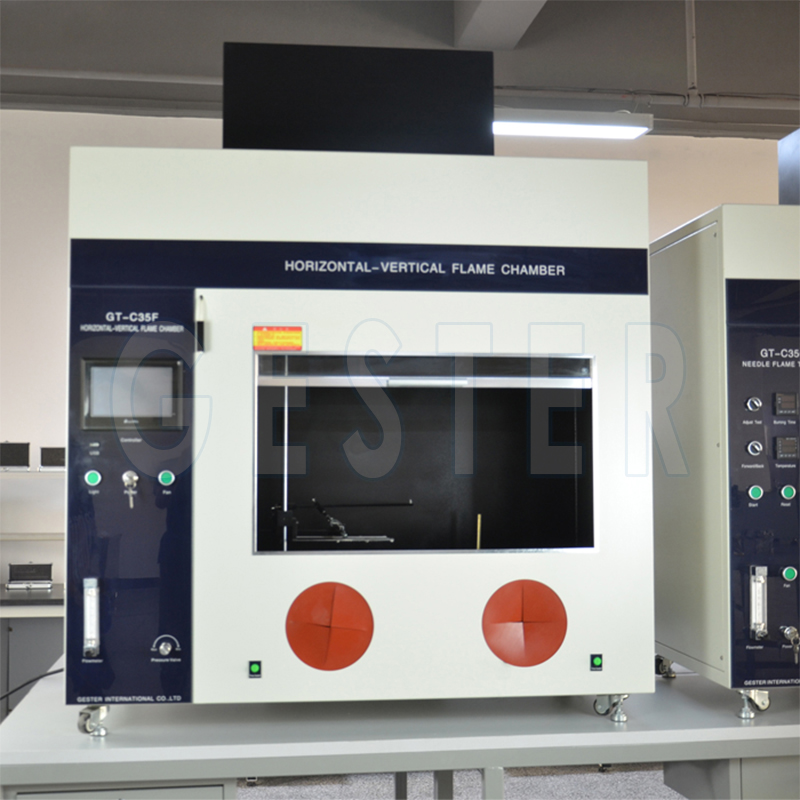

UL 94 Horizontal and Vertical Flame Chamber

Application

Horizontal and Vertical Flame Chamber is using of automobile manufacturing using CNC machining centers 2mm cold plate shape, good looks, high-grade. Outdoor grade powder coating technology, high texture, no discoloration. Import control components, safe and reliable. Horizontal Vertical Flame Chamber is according for ASTM D5025 dedicated burner , Easy for adjust flame height and with stable.

Standards:

UL 94

IEC 60695-11-3

IEC 60695-11-4

ISO 9772.3/6722

ASTM D635/3801/4804/4986

Control System

Time controller	Touch Screen Control
Differential gauge	U-pressure direct-reading meter
Flow meter	Specific methane flow

Key Specifications

Internal dimensions	120 x 60 x 112cm (WxDxH)
External dimensions	120 x 65 x 150cm (WxDxH)
Inside cubage	0.8m³
Flame height:	15-175mm/min (can be adjustment)
Gas flowmeter	20-200ml/min (can be adjustment)
Gas press	5-200mm (can be adjustment)
Flame angle	0-45degree (can be adjustment)
Burner height adjust	50mm
Sample vertical move distance	450mm
Sample horizontal move distance	180mm
Burn time	0-99.99s (can be adjustment)
After flame time / after glow time	0.1s-99.99s (can be adjustment)
Precision	0.01s

Main Body Assembly

Box material	The test vehicle both inside and outside use of 2mm cold plate CNC forming
Inside lamp source	Explosion-proof light ( Osram or Philips 40W halogen lamp)
Exhaust system	Standard 180W exhaust fan
Viewing window	5mm armoured glass ( 60 x 40cm)
Design of viewing window	Adopt principles of electrical counterweight, Mute rail design, weightlessness, without noise
Transmit mechanism	Axis linear bearing drive with chrome design
Clamp design	Imported anodized aluminum

Standard accessories	HB (ASTM D 635, ISO 1210) - Horizontal Burning Test and test fixture
	V-0-1-2 (ASTM D 3801, IEC 60695-11-10) - 50W (20 mm) Vertical Burning Test and test fixture
	Flame height gauge
Optional accessories	5VA/5VB (ASTM D 5048, ISO 9772, IEC 60695-11-20) -- 500 W (125 mm) Vertical Burning Test and test fixture
	HBF/ HF 1-2 (ASTM D 4986) - Horizontal Burning Foamed Material Test and test fixture
	VTM-0-1-2 (ASTM D 4804, ISO 9773) - Thin Material Vertical Burning Test and test fixture
	Thermocouple and Temperature Calibration Device
	Medical Absorbent Cotton
